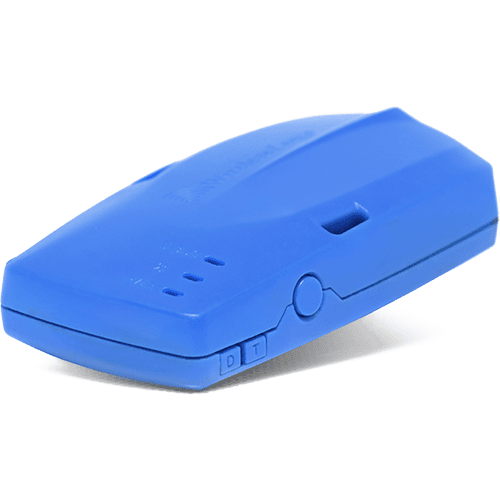

Bluelink ELD + Cable

Effortless installation. Simply plug the device into the vehicles ECM port-with a 9-Pin, 6-Pin or OBDII Light / Heavy Duty Plug and Play Harness. Unique Pass-through connector allows access to ECM port with device plugged in and transfers the Jbus data to any tablet or smartphone via Bluetooth.

Availability: In stock

klarnaPay in 4 interest-free payments of $

klarna

Shop now, pay later

4 interest-free payments of $

  • klarna
    Add items you want to your basket.
  • klarna
    Choose Klarna at checkout.
  • klarna
    Your purchase will be split into four
    equal, interest-free payments. The
    first is due when your order is shipped.
  • klarna
    The reamaining three payments will be
    automatically cherged to your debit or
    credit card every two weeks.
    Learn more.

See complete terms. For CA residents, loans made
or arranged are pursuant to a California Finance
Lenders Law license.

$239.00

About the Product

BlueLink is the ideal ELD Device to be used with smartphones or broadband tablets, for fleets
looking for ELD compliance. BlueLink sends the engine diagnostics data required by FMCSA for ELD compliance including: Odometer, Engine Hours, Engine ON / OFF.

Effortless installation. Simply plug the device into the vehicles ECM port-with a 9-Pin, 6-Pin or OBDII Light / Heavy Duty Plug and Play Harness. Unique Pass-through connector allows access to ECM port with device plugged in and transfers the Jbus data to any tablet or smartphone via Bluetooth.

  • Bluetooth

    BLE 4.1

  • Connection

    9-pin, 6-pin, OBDII Light/Heavy Duty Harness

  • Protocols

    CANbus J1939 / OBDII and RS-485 J1708

  • Operating system

    IOS, Android

  • Temperature

    -40 to 257 F (-30 to 80 C)

  • Operating Temperature

    -22o to 176o F (-30o to 80o C)

  • Storage Temperature

    -40o to 180o F (-40o to 85o C)

  • Humidity

    0 to 99% 110F (40C), non-condensing

  • Shock, Vibration, Mechanical

    Meets or exceeds EIA standard RS-316B 3G (operating), 20G (non operating) XYZ 3 directions. Meets SAE J1455

  • Dimensions

    2.71 x 1.49 x 0.75 (69mm x 38mm x 19mm)

  • Frequency Bands

    2.4Ghz BLE 4.2

  • Power

    6-32V

  • Configuration

    Configuration and firmware upgrade via USBusing BlueLink admin

  • Firmware

    Firmware upgrade via USB

  • Reads and transfers the vehicle’s odometer data to any mobile device. Supports J1939, J1708 and OBDII protocols.
  • Simply plug BlueLink into the vehicle’s Jbus port and you’re all set, or optionally hardwire in place.
  • Easy to link BlueLink with any device.
  • BlueLink transfers the Jbus data to any device via the latest Bluetooth technology.
