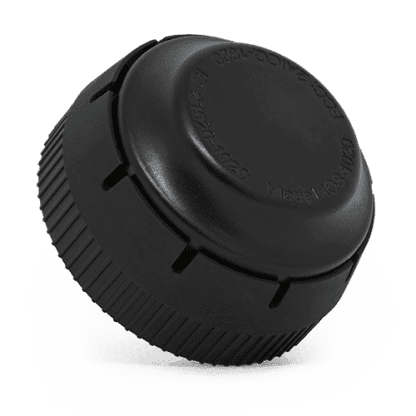

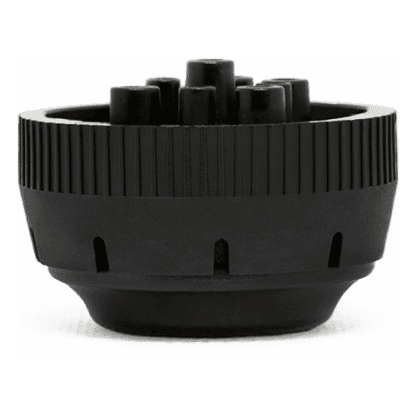

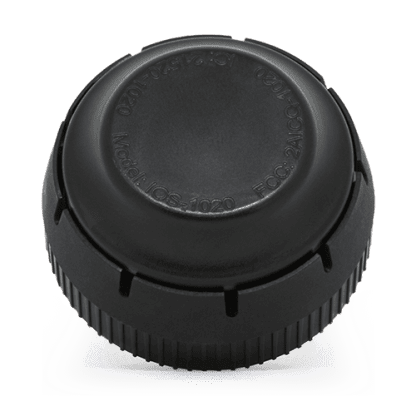

The IoSix ELD with GPSTab is a no-contract, FMCSA approved system designed to help your fleet drive more miles and make more money.

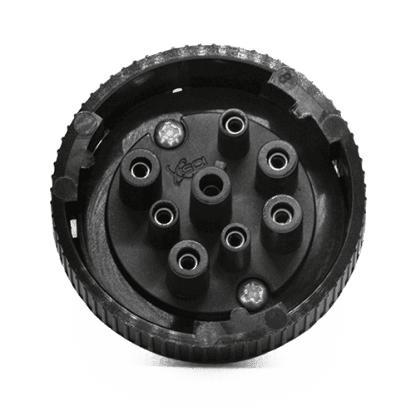

In combination with our monthly GPSTab app, your fleet can implement the HOS flexibility in alignment with FMCSA regulations. The hardware connects directly to the J1939 port and is compatible with virtually all ELD systems. The connector comes in various versions to support your needs, firmware options are available to suit your needs.
GPSTab ELD is registered & compliant with FMCSA.
IOSiX’s device is the smallest form factor in the industry.
Wi-Fi:
802.11bgn WiFi interface with embedded antenna
Bluetooth:
Bluetooth 4.2 Low Energy interface with embedded antenna
GPS Antenna:
66-channel high-performance/sensitivity GPS receiver with embedded antenna
Processor:
Dual-core 240MHz processor
Flash Memory:
2MB flash memory, good for more than 30 days of ELD data buffering
CAN Bus:
Up to 3x CAN bus interfaces allow access to all vehicle data 1x J1708 interface
Interfaces:
OEM-grade and certified vehicle interfaces shared with other IOSiX products
Protocols:
Support for J1939, ISO-15765, J1587, and other vehicle protocols for maximum compatibility
Corrections:
Contains over 100 field-identified corrections to vehicle information
Update:
Firmware easily updatable over-the-air
Voltage:
Operates from 4-30V, can withstand -30 to +100V
Temperature:
Industrial -40 to +125 C operational temperature range
Certification:
FCC and IC certified
Weight:
28 g
Dimensions:
40.3 × 40.3 × 28.3 mm
